Designs and Performance Evaluation of High-rigid Panels / 高剛性パネルの設計と性能評価

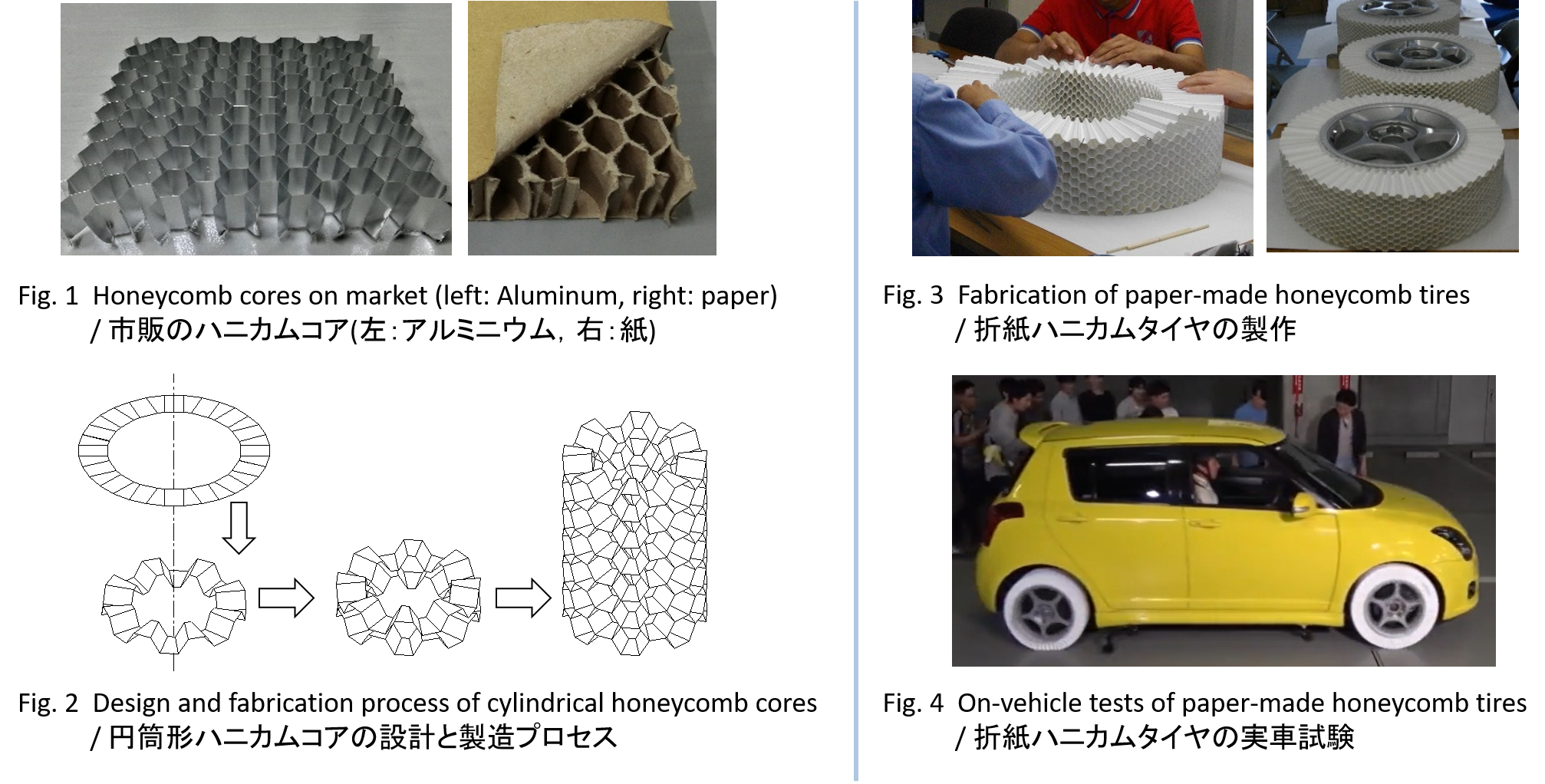

The scope of this study is focused on "high rigidity" of origami. Core materials such as honeycomb cores are widely used for transport aircrafts, buildings, and so on, to support heavy loads. In our laboratory, we have designed new cylinder-shaped honeycomb cores (Fig. 2) derived from the existing honeycomb cores (Fig. 1), for future application to rotary machines such as vehicle tires and bearings. The new cylindrical honeycomb cores can be fabricated by folding annular sheets to corrugated shapes, gluing and laying them repeatedly. This fabrication process is called corrugated method and also used for the existing flat honeycomb cores. Following the existing method is important for smooth transfer to mass production. So far, we fabricated honeycomb tires using our designs with the same dimension as car tires (Fig. 3), and performed on-vehicle tests to evaluate stiffness and strength of the honeycombs (Fig. 4). It was challenging to support a weight of over 1 ton by 4 paper-made tires, but we calculated appropriate core sizes for high stiffness and strength. Finally, we succeeded in starting, going straight on, and stopping the car. Through this challenge, we demonstrated that devised honeycomb cores could support heavy radial loads even by using soft paper material. A part of this study is introduced on YouTube "Origami Engineering Expands Our Life and Space Technology," National Geographic (published on 27 December, 2020).

折紙の持つ“高剛性”という特性に焦点をあてた研究です。ハニカムコアをはじめとするコア構造は軽量で高剛性、高強度であることから様々な輸送機や建材に利用されています。当研究室では折紙の数理を用い、市販の平板状ハニカムコア(Fig. 1)を発展させて、タイヤや軸受のような回転機械へと応用できる円筒状のハニカムコア(Fig. 2)を設計しました。環状のシート材の折り目は成形後に円筒になるようにあらかじめ計算されており、これを波状に折って接着、積層を繰り返すと円筒状のハニカムコアが成形できます。これはコルゲート法と呼ばれるハニカムコアの一般的な製造法の1つで、新しいハニカムコアも既存の製造法を踏襲できるように設計することで大量生産を視野に入れています。 この円筒ハニカムコアを乗用車タイヤと同じ寸法で製作し(Fig. 3)、乗用車に取り付けて、剛性や強度を評価するための実車試験を行いました(Fig. 4)。タイヤの素材は汎用的な紙のため1tを超える車重を支えるのは大きなチャレンジでしたが、コアの六角形の寸法を小さく設計して強度を上げ、発車、直進、停車に成功しました。 このように、紙のように柔らかい材料であっても、ハニカムコアのように形を工夫することによって大きな荷重を支えることができることを実証しました。
本研究の一部は、ナショナルジオグラフィック「拓こう、宇宙と暮らしの折紙工学」(2020年12月27日公開)にて紹介されています。
